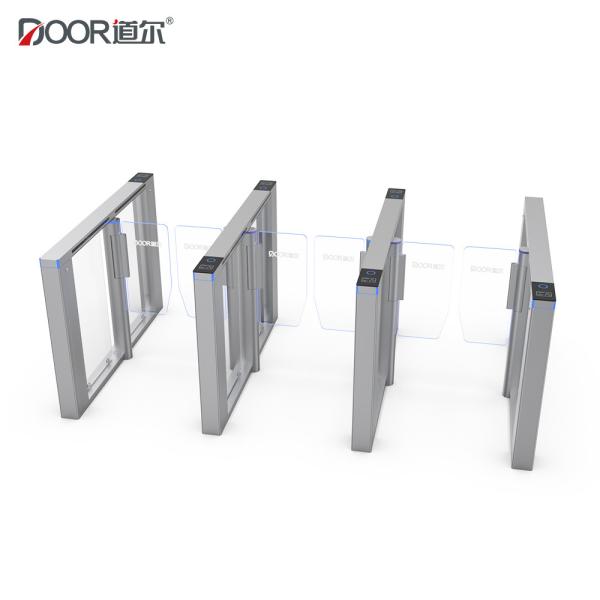

Servo Motor SUS 304 Brushed Stainless Steel Slim Speed Gate Turnstile

Name: Servo Motor SUS 304 Brushed Stainless Steel Slim Speed Gate Turnstile
Brand: DOOR
Price: 1 USD

China Servo Motor SUS 304 Brushed Stainless Steel Slim Speed Gate Turnstile factory

Brand Name : DOOR

Model Number : DR.TD.6682

Certification : CE / IS09001

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T

Supply Ability : 2500PCS/Month

Delivery Time : 5-7 days

Packaging Details : wooden box package

material : SUS304 brushed stainless steel

size : 1500*110*988mm

Drive Unit : Servo motor

Pass Width : Standard 550mm, max 900mm

Pass rate : 40-45personal/min

Operating time : Adjustable, fastest 0.3S

Input Voltage : AC110/AC220±10% 50-60Hz

Protection level : IP42

Communication interface : RS485, TCP/IP interface

Number of Sensor : 8 pairs

Color : Can be customized

Contact Now

Servo Motor SUS 304 Brushed Stainless Steel Slim Speed Gate Turnstile

This slim speed gate used aluminum alloy material, corrosion resistance, high temperature resistance, oxidation resistance, durable. Anti fingerprint housing, Unique design.

Specifications:

Structure Parameter
Material:	Aluminum Alloy (whole body over 3mm)
Swing arm available	Acrylic
Size	L1500×W110×H988mm
Technical Parameter
Passage Width	Standard 550mm, max 900mm
Passing Speed	40-45personal/min
Opening Speed	Adjustable, fastest 0.3s
Working Temperature	-30℃-+65℃
Mean Cycles Between Failure	10 million times
IP Rating	IP42
Electric Parameter
Voltage	AC110V/AC220V±10% 50-60Hz
Operating Power	Single Core 100w, dual core 200w
Driving Motor	Servo motor
Method of position	Use the encoder to make sure the swing gate position
Communication Interface	RS485, TCP/IP interface
Number of Sensor	6 groups

Wooden box package:

Project case:

Product Tags:

0.3S Stainless Steel Turnstile

Stainless Steel Turnstile

Speed Turnstile Gate

Servo Motor SUS 304 Brushed Stainless Steel Slim Speed Gate Turnstile Images
