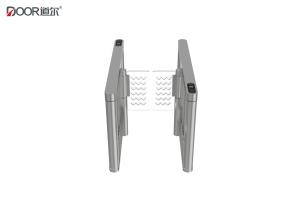

550mm-1100mm Channel Width Office Turnstile , Pedestrian Gate Access Control
Company Introduction:
Shenzhen Door Intelligent Control Technology Co.,Ltd. (Stock Code 832966) is a high-tech enterprise in the field of intelligent access control based on cloud computing, which located in Longhua District, Shenzhen. The company has more than 400 employees, including 200 R&D
and technical personnel. Door has already achieved National High-Tech Enterprise Certification, Double Soft Enterprise Certification, ISO9000 International Quality System Certification and CE Certification. Meantime, the company has obtained over 60 invention patents and national software copyright with registered capital of CNY 100.06 million.
In Shenzhen, Shanghai, Beijing, Guangzhou, Chengdu and Zhengzhou, Door has established six regions, 38 operation services centers, 400 calls services platforms and built a services network which covering the whole country. The Products and Services of Door Intelligent Control has played an intelligent demonstration role in tens of thousands of projects including party and government organs, state-owned enterprises, 5A scenic spots, 3A hospitals, key universities, airport, high-speed railway, business centers and so on in more than 400 cities throughout the country.
Device Parameter:
| Material | SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm, Acrylic Arm. |
| Size | L1600*W160*H1030mm |
| Passage Width | standard 550mm, max 1100mm |
| Passing Speed | 35-40 personal/min |
| Opening Speed | Adjustable, fastest 0.3s |
| Working Temperature | -25℃-+70℃ |
| Mean Cycles Between Failure | 5 million times |
| IP Rating | IP42 |
| Voltage | AC110V/AC220V±10% 50-60Hz |
| Operating Power | Single Core 100w, dual core 200w |
| Driving Motor | Servo motor |
| Method of Position | Use the encoder to make sure the swing gate position |
| Communication Interface | RS485, TCP/IP interface |
| Input Signal | Dry contact signal or +12V level signal or DC 12V |
| Number of Sensor | 8 groups |
| | |
Warranty Service Statement
Our company products are guaranteed for one year, from date of sale, providing free maintenance based on not being damaged by any man-made.
- During the warranty period, all faults caused by the product itself can be maintained for free. Please carry the filled warranty card and the purchase invoice to the authorized service centers across the country or return the machine to our company for free repair.
- Within the period of free maintenance, faults or damages caused by man-made or natural disasters can be maintained with additional charge.
- Over the period of free maintenance, faults or damages can be maintained with additional charge. The following conditions are not under warranty:1. Damages caused by abnormal operation, man-made or natural disasters;2. Damages after disassembling any portion of the machine (lines, components etc.) ;3.Damages caused by wrong guide of non-professional technicians;4. Damages caused by adding other functions with unauthorized modification or installation with other equipment.
FAQ:
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7. How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
