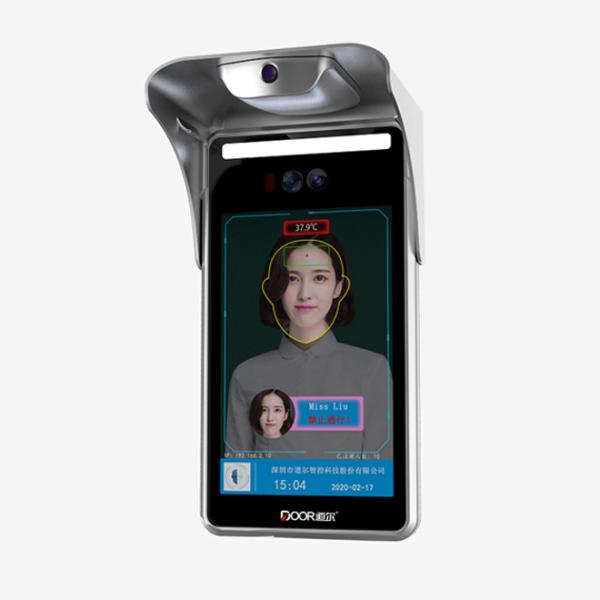

Non Contact RS485 Interface Face Recognition Camera System

Name: Non Contact RS485 Interface Face Recognition Camera System
Brand: DOOR
Price: 1 USD

China Non Contact RS485 Interface Face Recognition Camera System factory

Brand Name : DOOR

Model Number : DR.MJ.3637

Certification : CE / IS09001

Place of Origin : shenzhen China

MOQ : 1 piece

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A

Supply Ability : 20000 piece per month

Delivery Time : 5-7 working days

Packaging Details : Carton box

Product name : face recognition access system

Working Temperature : -30℃ - +60℃

Working Humidity : 0～90% Relative humidity, non-condensing

Salt Spray Grade : Rp6 above

Antistatic : Touching±6KV，Air±8KV

Power : DC12V/3A

Riot Rating : IK07

Protect level : IP66

Device Power ratio : 20W(MAX)

Contact Now

Non-Contact access control terminal AI face recognition camera system body temperature camera for face recognition

Product Features:
Support binocular live detection
Support human face tracking exposure in strong backlight environment
Unique face recognition algorithm, accurate face recognition, face recognition time is less than 0.5s
Built-in domestic CPU
Using LINUX operating system, the system is stable
Support local storage of TF card, continuous storage of pictures for 1 year, continuous storage of videos for 1 month or longer (related to the optional TF card capacity)
The average trouble-free running time of the host MTBF> 50000h

Specifications:

Recognize height	1.2~2.2 meter, angle Adjustable
Recognition distance	0.3~1.5 meter, Variable view lens
Recognition time	Less than 0.5 second
storage capacity	160,000 snapshot records
Face capacity	24000 faces
Screen brightness	≥400cd/m2
Interface
Switch output	1 switch output, other GPIO ports can be customized
Network Interface	1 RJ45 10M / 100M adaptive Ethernet port, customized Gigabit network port
Wiegand interface	1 Wiegand interface input, 1 Wiegand interface output
USB interface	1 USB interface as device
Communication Interface	1 RS485 interface
Camera parameters
Camera	Binocular camera, visible light and near infrared, support live detection
Effective Pixels	2.1 million effective pixels, 1920*1080
Minimum illumination	Color 0.01Lux @ F1.2 (ICR); black and white 0.001Lux @ F1.2 (ICR)
Noise ratio	≥50db(AGC OFF)
Wide dynamic	120db,ISP algorithm partial face exposure
Video coding	H.265 Main Profile encoding / H.264 BP / MP / HP encoding / MJPEG encoding
Image Resolution	main stream	50Hz: 25fps (1920×1080,1280×720)
		60Hz: 30fps (1920×1080,1280×720)
	Sub-stream	720 * 576, 1-25 (30) frames / second / 640 * 480, 1-25 (30) frames / second
		320*240,1-25(30)frames/second

Product detailes:

Application:

Product Tags:

400CD/M2 Body Temperature Camera

RS485 Interface Access Control Terminal

Non Contact RS485 Interface Face Recognition Camera System Images
