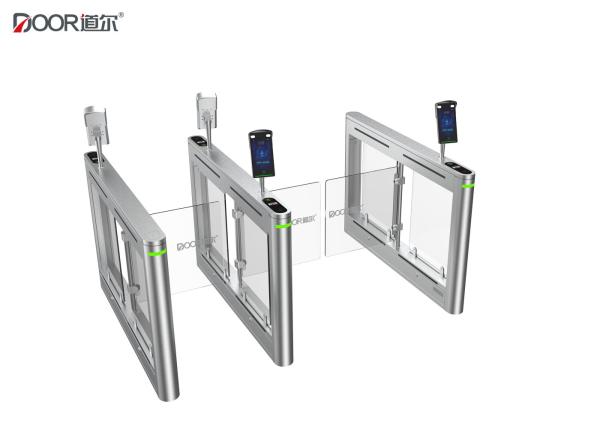

6 Sensors Pedestrian Swing Gate , Access Control Turnstile Gate Ce Certified

Brand Name : DOOR

Model Number : DRTD6656

Certification : CE / IS09001

Place of Origin : China

MOQ : 2 sets

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability : 2500 sets per month

Delivery Time : 5-7 working days

Packaging Details : wood carton

Material : SUS304 stainless steel

Size : L1600mm*W125mm*H1000mm

Power supply : AC110/AC220+/-10%

Channel Width : <1100mm

Working environment : Indoor

Communication interface : RS485,dry contact

Contact Now

6 Sensors Pedestrian Swing Gate , Access Control Turnstile Gate Ce Certified

Product Description:

  • Intelligent Speed Gate Turnstile DRTD6656 is self-designed, developed, and produced intelligent channel management equipment by Shenzhen Door Intelligent Control Technology Co., Ltd.
  • The whole product structure adopts stainless steel laser cutting and CNC bending forming. Through using advanced processing technology and strict quality control, the product shape is simple and elegant.
  • The product integrates various types of card readers, two-dimensional code, face recognition, etc., which can easily integrate ID card, IC card, biometric and other reading and writing devices, To meet the needs of the fire channel, a dedicated fire button is set in the system which interface to automatically open the gate in an emergency and organize personnel to evacuate.

Product Parameter:

Structure Parameter
Material SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm
Swing gate material Acrylic
Channel Width Standard 600mm, max 1100mm
Technical Parameter
Passing Speed 30-35 personal/min
Opening Speed Adjustable, fastest 0.2s
Working Temperature -25℃-+70℃
Mean Cycles Between Failure 5 million times
IP Rating IP42
Electric Parameter
Voltage AC110/AC220 50-60Hz
Output Power Single Core 30W, dual core 60W
Driving Motor DC brushless motor
Method of position Use the encoder to make sure the swing gate position
Communication interface RS485, TCP/IP interface
Input / Output signal dry contact signal input, 6 groups infrared sensor

Product Function:

Application:

FAQ:

Q1: Do you have English version system?

A: Yes, we can provide English version system. Also you can use your own system as well.

Q2: Does the equipement include control board?

A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.

Q3: Can we connect your access control system with our system?

A: Yes, we provide SDK and Software development service with connection port.

Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.

Q5: What is your company’s strength?

A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.

Q6: How do you do after-sale service?

A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

Q7. How about the lead time?

Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
